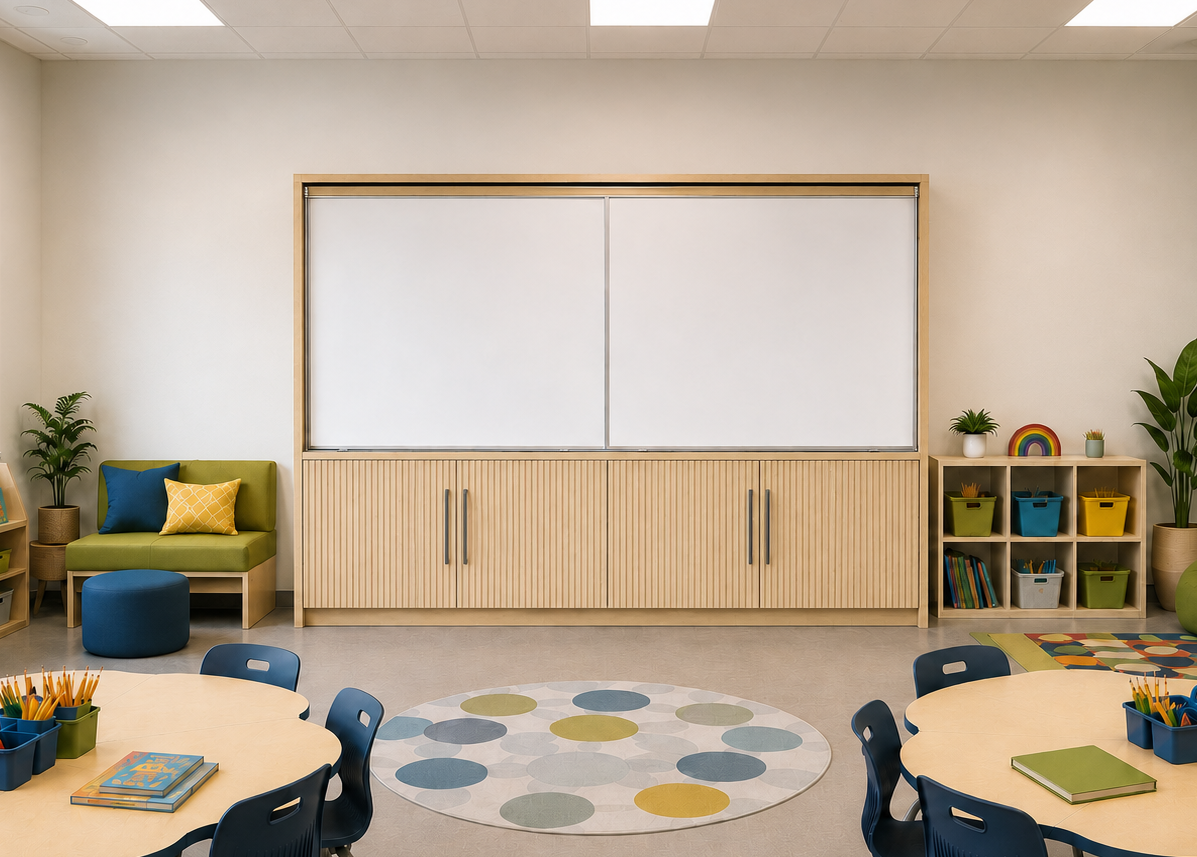

Built-In Horizontal Sliding Unit (Top Supported)

Writanium® Markerboards

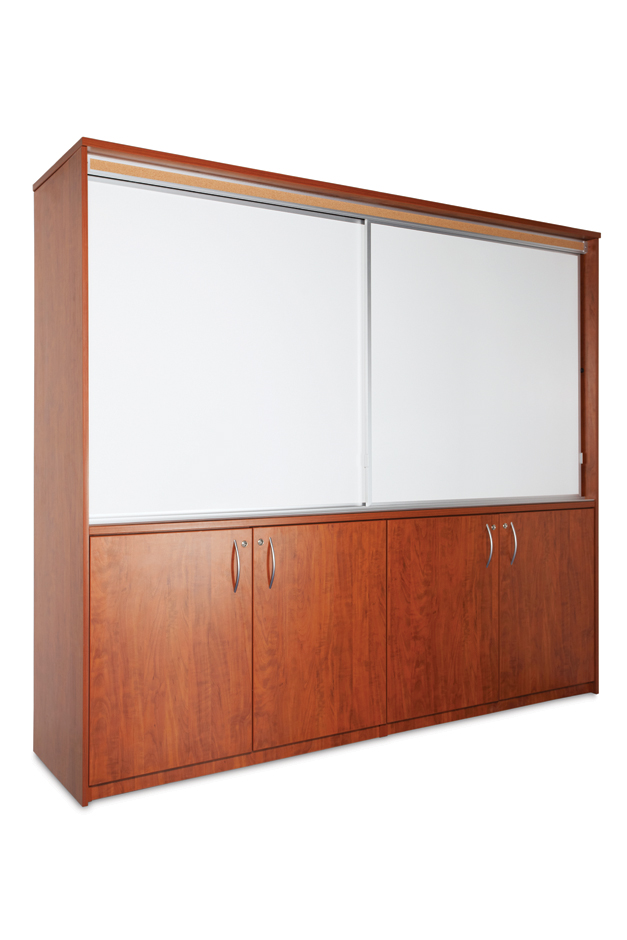

A perfect fit. We customize our Built-in Horizontal Sliding Units without housing to use in your existing cabinetry.
Choose from any of our tackable or writing surface options.

  • Porcelain-on-steel writing surfaces with a lifetime warranty.
  • Available in either top support (THS) or sill support (SHS) sliding panels.
  • Heavy duty aluminum extrusions come standard in clear satin anodized.
  • Select alternative finishes in dark bronze anodized or powder coated options.
  • Safety first: radius blade tray ends equal no sharp edges.

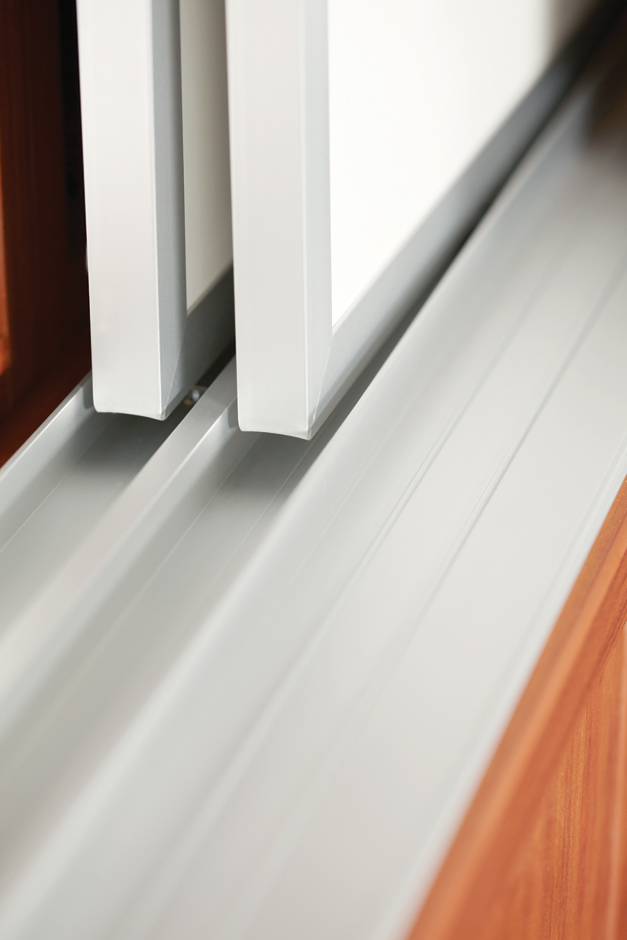

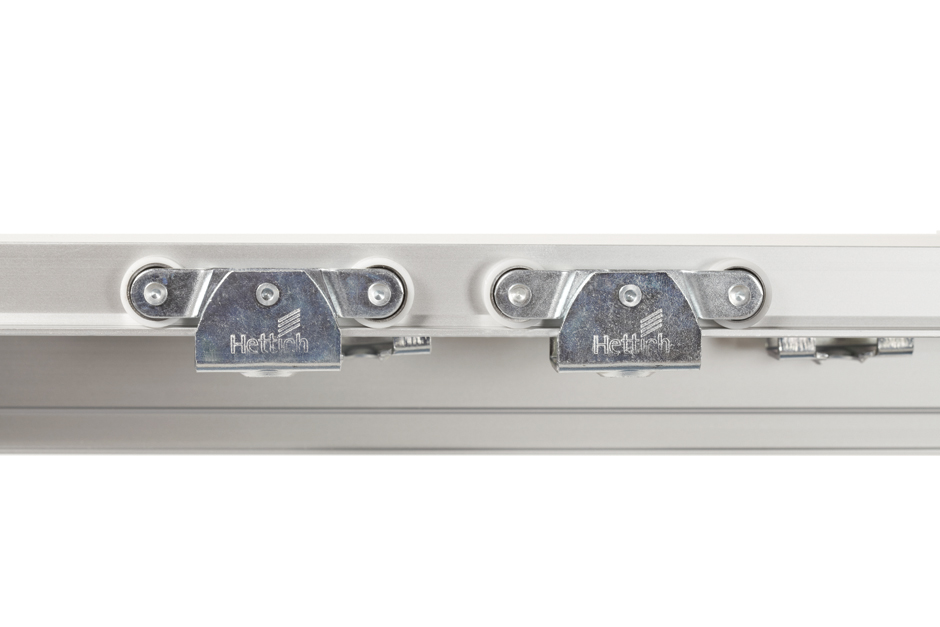

PVS - Top Supported Tracks

2 TRACKS & 2 HALF WIDTH PANELS

MODEL SIZE (HxW) WEIGHT
815140800 4′ x 8′ 133 lbs
815141000 4′ x 10′ 192 lbs
815141200 4′ x 12′ 186 lbs
815141600 4′ x 16′ 252 lbs

3 TRACKS & 3 HALF WIDTH PANELS

MODEL SIZE (HxW) WEIGHT
815540800 4′ x 8′ 161 lbs
815541000 4′ x 10′ 233 lbs
815541200 4′ x 12′ 235 lbs
815541600 4′ x 16′ 328 lbs

THS Specification Sheet (PDF)
AutoCad Files (DWG)
AutoCad Files (DXF)
Cleaning Instructions

CLICK HERE TO DOWNLOAD OUR 2020 CATALOG
